Onyx Ontology Specification
V1.7 - 06 September 2021
- Introduction
- Onyx ontology at a glance
- Onyx ontology overview
- Emotion Models for Onyx
- Cross-reference for Onyx classes and properties Classes and Properties
- document wide sentiment analysis
- sentence sentiment analysis
- feature-based sentiment analysis
- enable to publish raw data about emotions in user-generated content
- deliver schema that will allow to compare emotions coming from different systems (polarity, topics, features)
- interconnect emotions by linking them to contextual information expressed with concepts from other popular ontologies or specialised domain ontologies
- Change namespace to http://www.gsi.upm.es/ontologies/onyx/ns because www.gsi.dit.upm.es is no longer available.
- Adaptation to the EmoSpaces project
- Better appraisal, action tendency and dimension properties
- Improved Ontology Model classes
- Change Appraisal and Dimension from Properties to Classes
- Added EmotionCategory
- Added EmotionIntensity
- Renamed EmotionResult to EmotionExpression
- Added properties to comply with EmotionML
- Renamed Emotion to EmotionResult
- Added Emotion class
- Moved emotion type to the Emotion class
- First version of the document
| This version: | http://gsi.upm.es/ontologies/onyx/1.7 (RDF/XML, HTML) |
| Latest version: | http://gsi.upm.es/ontologies/onyx |
| Previous version: | http://gsi.upm.es/ontologies/onyx/1.6 (RDF/XML, HTML) |
| Editors: | J. Fernando Sánchez-Rada |
| Authors: | J. Fernando Sánchez-Rada |
| Contributors: | See acknowledgements |
This work is licensed under a Creative Commons Attribution License. This copyright applies to the Onyx Ontology Specification and accompanying documentation in RDF. This ontology uses W3C's RDF technology, an open Web standard that can be freely used by anyone.
Abstract
Onyx is a standardised data schema (also referred as "ontology" or "vocabulary") designed to annotate and describe the emotions expressed by user-generated content on the web or in particular Information Systems. The following document contains the description of the ontology and instructions on how to connect it with descriptions of other resources.
Table of Contents
Appendixes
1 Introduction
The following specification is a formal description of metadata schema proposal that can be applied to emotions extracted from user-generated content on the Web. The goal of the following section is to provide the basic knowledge to comprehend the technical part of the specification. As such it shall introduce both Semantic Web and general topic of opinion representation and sentiment analysis.
Onyx aims to complement the Marl Ontology by providing a simple means to describe emotion analysis processes and results using semantic technologies.
1.1 Opinions on the Web and the opinion mining process
With the birth of Web 2.0 users started to provide their input and create content on mass scape about their subjective opinions related to various topics (e.g. opinions about movies). While this kind of content can be very beneficial for many different uses (e.g. market analysis or predictions) it's accurate analysis and interpretation has not been fully harnessed yet. Information left by the users is often very disorganised and many portals that enable user input leave the user added information unmoderated.
Opinion mining (often referred as sentiment analysis) is one of the attempts bring order to those vast amounts of user generated content. The domain focuses to analyse textual content using special language processing tools and as output provides a quantified judgement of the sentiments contained in the text (e.g. if the text expresses a positive or negative opinion).
Due to the complexity of the problem and attempts to provide efficient and fast tools the area can be divided into three main research directions:
In relation to the World Wide Web, there is a number of common uses of opinion formalisation and analysis. Firstly, it can be applied on top of search engines to find the desired content and next run it through opinion analysis software to obtain desired statistics (e.g. Swotti). Secondly, such algorithms can used within dedicated systems that use the Web to connect to particular communities and gather their opinions on very specific topics (e.g. Internet shops or review websites).
In relation to the dedicated systems (e.g. Enterprise Systems), there the community collaborative models that have proven successful in the open web are often transferred to large enterprise to enhance knowledge exchange and bring the employees together. The same opinion mining techniques can be applied in such cases to extract particular information and use it for internal statistics and to improve knowledge search across the enterprise (e.g. see use of opinion mining in Idea Management [link]).
1.2 The Semantic Web
The Semantic Web is a W3C initiative that aims to introduce rich metadata to the current Web and provide machine readable and processable data as a supplement to human-readable Web.
Semantic Web is a mature domain that has been in research phase for many years and with the increasing amount of commercial interest and emerging products is starting to gain appreciation and popularity as one of the rising trends for the future Internet.
One of the corner stones of the Semantic Web is research on inter-linkable and interoperable data schemas for information published online. Those schemas are often referred to as ontologies or vocabularies. In order to facilitate the concept of ontologies that lead to a truly interoperable Web of Data, W3C has proposed a series of technologies such as RDF and OWL. Onyx uses those technologies and the research that comes within to propose an ontology for the particular goal of describing opinions and linking them with contextual information (such as opinion topic, features described in the opinion etc.).
1.3 What is Onyx for?
The goals of the Onyx ontology to achieve as a data schema are:
2. Onyx ontology at a glance
An alphabetical index of Onyx terms, by class (concepts) and by property (relationships, attributes), are given below. All the terms are hyperlinked to their detailed description for quick reference.
Classes: | AggregatedEmotion | AggregatedEmotionSet | Emotion | EmotionAnalysis | EmotionCategory | EmotionModel | EmotionSet | Media |
Properties: | ActionTendency | Appraisal | Dimension | aggregatesEmotion | aggregatesEmotionSet | algorithm | algorithmConfidence | emotionText | extractedFrom | hasActionTendency | hasAppraisal | hasDimension | hasEmotion | hasEmotionCategory | hasEmotionIntensity | hasEmotionSet | modelName | source | sourceText | usesEmotionModel |
3. Onyx ontology overview

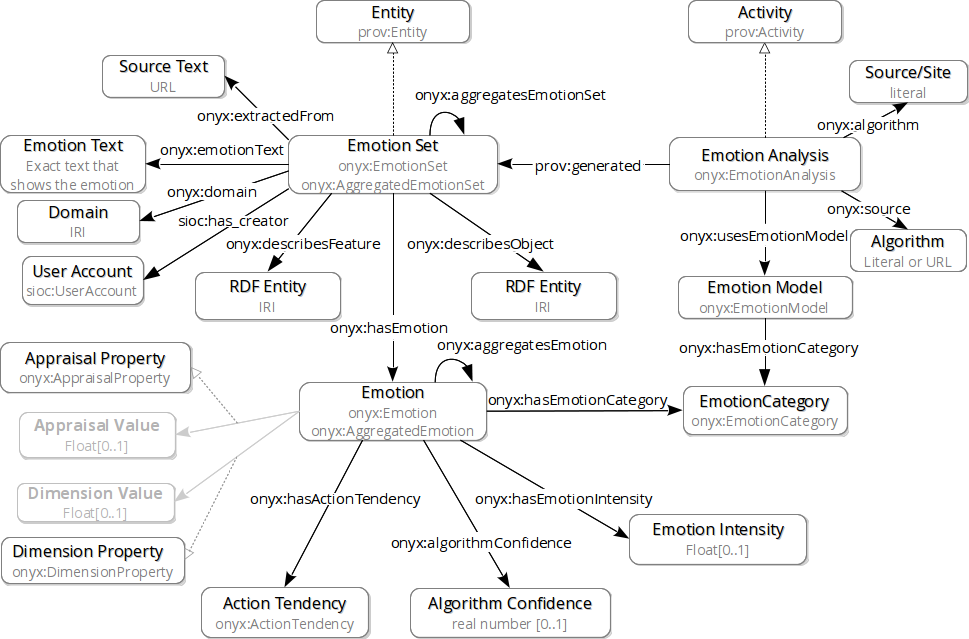

The Onyx class diagram presented below shows connections between classes and properties used for describing opinions.
3.1. Example

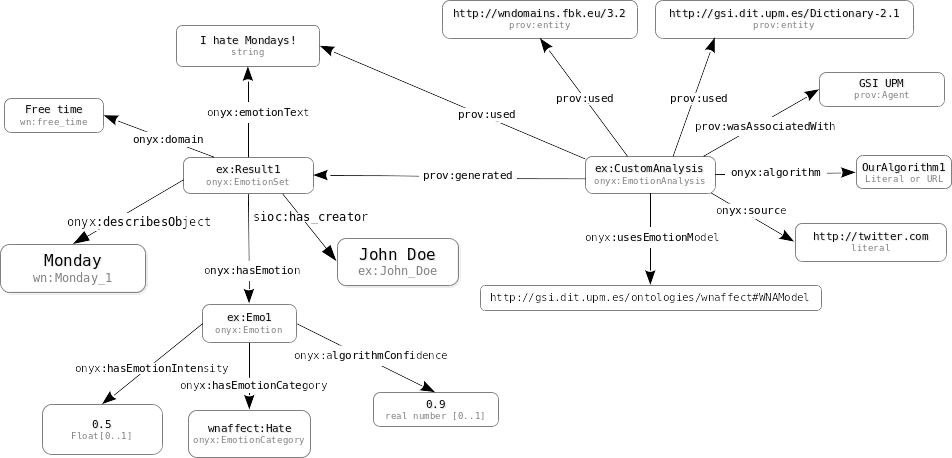

A very basic example below shows a single opinion annotated with Onyx metadata:
1.4 Emotion Models for Onyx (Onyx vocabularies)
Proper annotations with Onyx depend on the specification of an EmotionModel, which represents a categorical or dimensional model of emotions.
The Onyx ontology avoids including specific EmotionModel instances on purpose. However, a series of popular models have been converted to the Onyx format. All the information can be found in the Onyx vocabularies website.
4. Cross-reference for Onyx classes and properties
Below see a comprehensive list of all Onyx classes, properties and their descriptions.
Classes and Properties (full detail)
Classes
Class: http://www.gsi.upm.es/ontologies/onyx/ns#:AggregatedEmotion
AggregatedEmotion - The same as Emotion, used to aggregate several emotions| Status: | unknown | |
|---|---|---|
| Properties include: | aggregatesEmotion | |
| Sub class of | Emotion | |
| OWL Class | ||
[#] [back to top]
Class: http://www.gsi.upm.es/ontologies/onyx/ns#:AggregatedEmotionSet
AggregatedEmotionSet - The same as the EmotionSet class but indicates that the properties of this class aggregate all the emotions detected in the "extractedFrom" source. If the aggregatesEmotionSet property is used this class could be created to aggregate only certain emotions.| Status: | unknown | |
|---|---|---|
| Properties include: | aggregatesEmotionSet | |
| Sub class of | EmotionSet | |
| OWL Class | ||
[#] [back to top]
Class: http://www.gsi.upm.es/ontologies/onyx/ns#:Emotion
Emotion - Class that represents emotions in a generic way| Status: | unknown | |
|---|---|---|
| Properties include: | algorithmConfidence hasEmotionIntensity | |
| Used with: | hasEmotion aggregatesEmotion | |
| Has sub class | AggregatedEmotion | |
| OWL Class | ||
[#] [back to top]
Class: http://www.gsi.upm.es/ontologies/onyx/ns#:EmotionAnalysis
EmotionAnalysis - The action of analysing the sentiment in an entity. It produces an onyx:emotion| Status: | unknown | |
|---|---|---|
| Properties include: | algorithm source | |
| Sub class of | http://www.w3.org/ns/prov#:Activity | |
| OWL Class | ||
[#] [back to top]
Class: http://www.gsi.upm.es/ontologies/onyx/ns#:EmotionCategory
EmotionCategory - Class that represents an emotion category (anger, happiness, etc.)| Status: | unknown | |
|---|---|---|
| Properties include: | modelName | |
| Used with: | hasEmotionCategory | |
| OWL Class | ||
[#] [back to top]
Class: http://www.gsi.upm.es/ontologies/onyx/ns#:EmotionModel
EmotionModel - Represents an Emotion Representation Model, grouping its categories, dimensions, properties...| Status: | unknown | |
|---|---|---|
| Properties include: | hasAppraisal hasDimension | |
| Used with: | usesEmotionModel | |
| OWL Class | ||
[#] [back to top]
Class: http://www.gsi.upm.es/ontologies/onyx/ns#:EmotionSet
EmotionSet - Describes the concept of emotion expressed in a certain text.| Status: | unknown | |
|---|---|---|
| Properties include: | extractedFrom domain hasEmotion emotionText | |
| Used with: | aggregatesEmotionSet hasEmotionSet | |
| Sub class of | http://www.w3.org/ns/prov#:Entity | |
| Has sub class | AggregatedEmotionSet | |
| OWL Class | ||
[#] [back to top]
Class: http://www.gsi.upm.es/ontologies/onyx/ns#:Media
MediaContext - Extends the NIF context to represent contexts with Multimedia. It is the equivalent of nif:String| Status: | unknown | |
|---|---|---|
| Sub class of | http://persistence.uni-leipzig.org/nlp2rdf/ontologies/nif-core#:Context | |
| OWL Class | ||
[#] [back to top]
Properties
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:ActionTendency
ActionTendency - Action Tendency of the emotion: a desire to behave in select communicative or important actions that are connected to a particular feeling.| Status: | unknown | |
|---|---|---|
| Datatype Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:Appraisal
Appraisal - Parent for Appraisal properties.| Status: | unknown | |
|---|---|---|
| Datatype Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:Dimension
Dimension - Parent for Dimension properties.| Status: | unknown | |
|---|---|---|
| Datatype Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:aggregatesEmotion
aggregatesEmotion - Indicates that the AggregatedEmotion has been derived from other Emotions.| Status: | unknown | |
|---|---|---|
| Domain: | AggregatedEmotion | |
| Range: | Emotion | |
| Object Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:aggregatesEmotionSet
aggregatesEmotionSet - Indicates that the emotions associated to this entity are a calculation (eg. average) of the emotions in other EmotionSets.| Status: | unknown | |
|---|---|---|
| Domain: | AggregatedEmotionSet | |
| Range: | EmotionSet | |
| Object Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:algorithm
algorithm - The algorithm used in the Sentiment Analysis.| Status: | unknown | |
|---|---|---|
| Domain: | EmotionAnalysis | |
| Object Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:algorithmConfidence
algorithmConfidence - A numerical value that represents the accuracy of result as estimated by the algorithm itself (how much the emotion matches a gives object/product).| Status: | unknown | |
|---|---|---|
| Domain: | Emotion | |
| Range: | xsd:float | |
| Datatype Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:emotionText
emotionText - The exact text extract that expresses the emotion. This can be used when entity/text pointed by extractedFrom contains many emotions. For example extractedFrom can point to a comment that contains many emotions about a movie, each emotion should have a separate onyx:Emotion and optionally an emotionText property to indicate the specific text fragment of the comment.| Status: | unknown | |
|---|---|---|
| Domain: | EmotionSet | |
| Datatype Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:extractedFrom
extractedFrom - Indicates the text from which the emotion has been extracted.| Status: | unknown | |
|---|---|---|
| Domain: | EmotionSet | |
| Range: | owl:Thing | |
| Inverse property of | the anonymous defined property with the label 'hasEmotionSet' (Object Property) | |
| Object Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:hasActionTendency
hasActionTendency - Action tendency of the Emotion.| Status: | unknown | |
|---|---|---|
| Domain: | http://www.gsi.upm.es/ontologies/onyx/ns#:EmotionModel | |
| Range: | ActionTendency | |
| Object Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:hasAppraisal
hasAppraisal - Used to list the appraisals that a model defines| Status: | unknown | |
|---|---|---|
| Domain: | EmotionModel | |
| Range: | Appraisal | |
| Object Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:hasDimension
hasDimension - Used to define the Dimensions of an Emotion Model| Status: | unknown | |
|---|---|---|
| Domain: | EmotionModel | |
| Range: | Dimension | |
| Object Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:hasEmotion
hasEmotion - Used to express the individual emotions within an EmotionSet.| Status: | unknown | |
|---|---|---|
| Domain: | EmotionSet | |
| Range: | Emotion | |
| Object Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:hasEmotionCategory
hasEmotionCategory - Value that represents the type of emotion.| Status: | unknown | |
|---|---|---|
| Domain: | http://www.gsi.upm.es/ontologies/onyx/ns#:Emotion or http://www.gsi.upm.es/ontologies/onyx/ns#:EmotionModel | |
| Range: | EmotionCategory | |
| Object Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:hasEmotionIntensity
hasEmotionIntensity - Value that quantifies the intensity of the emotion.| Status: | unknown | |
|---|---|---|
| Domain: | Emotion | |
| Range: | xsd:float | |
| Datatype Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:hasEmotionSet
hasEmotionSet - Indicates that a certain text has a subjective set of emotions expressed in it.| Status: | unknown | |
|---|---|---|
| Domain: | owl:Thing | |
| Range: | EmotionSet | |
| Has inverse property | extractedFrom | |
| Object Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:modelName
modelName - Human readable name of the model| Status: | unknown | |
|---|---|---|
| Domain: | EmotionCategory | |
| Range: | xsd:string | |
| Datatype Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:source
source - Source from which the emotion was extracted (URL, Site, Entity...)| Status: | unknown | |
|---|---|---|
| Domain: | EmotionAnalysis | |
| Object Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:sourceText
sourceText - Optional value that contains the text from which the emotionText was taken.| Status: | unknown | |
|---|---|---|
| Datatype Property | ||
[#] [back to top]
Property: http://www.gsi.upm.es/ontologies/onyx/ns#:usesEmotionModel
usesEmotionModel - Specifies the Emotion Model used. Mainly used to describe Emotion Analysis activities.| Status: | unknown | |
|---|---|---|
| Range: | EmotionModel | |
| Object Property | ||
[#] [back to top]
A Changelog
2021-09-06
2018-09-28
2013-07-26
2013-07-26
2013-07-21
2013-07-17
2013-06-27
2013-05-10
B Acknowledgements
This documentation has been generated automatically from the most recent ontology specification in OWL using a python script called SpecGen. The style formatting has been inspired on FOAF specification.
Special thanks for support with ontology creation and research to: Prof. Carlos A. Iglesias and members of the GSI Group of DIT department of Universidad Politécnica de Madrid.
This ontology has been modified and updated to be used in the EUROSENTIMENT Project
